Quick Facts

  • Optimized for fast, high-quality DAW mixing and editing in a small footprint
  • Intuitive, innovative, and powerful controls in an attractive package
  • 100mm touch-sensitive, high-resolution (true 10-bit positions) motorized fader
  • Three touch-sensitive encoders ... context-specific feedback appears on the 32-character backlit display
  • Innovative touch-sensitive jog and shuttle strip for fast timeline control
  • 22 buttons and 21 LED's for track-specific and global functions
  • Works with Pro Tools®, Sonar™(4+), Cubase®(3.02+), Reason™(3.01+), Digital Performer®(5+), Nuendo®(3.02+), Final Cut Pro™, Soundtrack Pro™, REAPER™, and other DAW software applications
  • Works on Windows XP/Vista and Mac OS X computers (Mac OS 10.3.9 or later), including Intel Macs
  • Footswitch input on back panel
  • No external power adapter required ... single USB connection and small size make it great for laptops!
Computer Music Performance Award iXBT Original Design Award 2008 Remix Technology Award 2008 Editors Choice Award

AlphaTrack and Mackie’s Tracktion 3.0.2.6

Mackie stepped up to the plate when they added support for the TranzPort wireless DAW controller in Tracktion 2. With Tracktion 3 they have hit a home run by including full native support for AlphaTrack, the compact DAW editing controller. Frontier Design Group is proud to provide this remarkably powerful control surface to Tracktion 3 users. AlphaTrack goes beyond simple level and pan control by giving you fast, intuitive access to Sends, EQ, Plug-In and Automation settings, all at your finger tips.

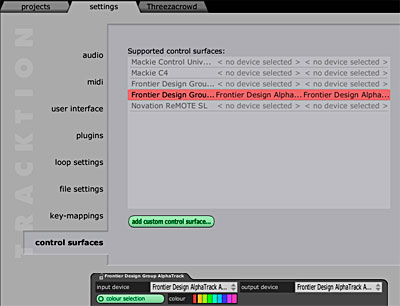

“Native Mode” support for AlphaTrack is a breeze to set up in Tracktion 3. Simply enable the AlphaTrack for MIDI Input and Output on the MIDI tab of the Tracktion Settings panel. Next, select the Control Surfaces tab and highlight “Frontier Design Group AlphaTrack” At the bottom of the page set the Input and Output device to itself. That’s it, you are ready to go. The AlphaTrack’s LCD display should reflect the currently selected track and other project information.

Tracktion 3 and AlphaTrack contains detailed instructions for configuring the AlphaTrack for use with Tracktion 3. Information on how to use some of AlphaTracks’ less-obvious features and a reference chart listing the default controls for Tracktion 3 are found in this useful document as well.

Tracktion 3 Layout is a single page picture of the AlphaTrack with overlaid text summarizing the Tracktion 3 feature set. It may be helpful to print this file and have it handy as a quick reference guide.

The AlphaTrack User’s Guide has full details on installing AlphaTrack on your PC.

We encourage visitors to our user forums to post their comments and questions. Other users often have useful ideas and experiences to share, and we monitor the posts to provide additional input.

Below are other AlphaTrack related links that may be useful:
